从实践中学习unidbg使用(四)
一、引言
本篇中的APK详见参考文章中
目标APK：bilibili.apk
目标方法实：libbili.so
二、任务介绍
JADX反编译.apk，找到com.bilibili.nativelibrary.LibBili类，其中的 s 方法是本篇的目标函数。它是一个静态方法，参数是Map，返回值是 SignedQuery 对象。
package com.bilibili.nativelibrary;
import androidx.annotation.NonNull;
import com.bilibili.lib.media.resource.PlayIndex;
import java.io.UnsupportedEncodingException;
import java.lang.annotation.Retention;
import java.lang.annotation.RetentionPolicy;
import java.security.InvalidKeyException;
import java.util.Arrays;
import java.util.Map;
import java.util.SortedMap;
import java.util.TreeMap;
import javax.crypto.spec.IvParameterSpec;
import javax.crypto.spec.SecretKeySpec;
/* compiled from: BL */
/* loaded from: classes.dex */
public final class LibBili {
public static final int a = 0;
public static final int b = 1;
/* renamed from: c, reason: collision with root package name */
public static final int f14891c = 0;
public static final int d = 1;
public static final int e = 2;
public static final int f = 3;
/* compiled from: BL */
@Retention(RetentionPolicy.SOURCE)
/* loaded from: classes.dex */
public @interface a {
}
/* compiled from: BL */
@Retention(RetentionPolicy.SOURCE)
/* loaded from: classes.dex */
public @interface b {
}
static {
com.getkeepsafe.relinker.c.c(PlayIndex.G);
}
private static native String a(String str);
private static native String ao(String str, int i2, int i3);
private static native IvParameterSpec b(String str) throws InvalidKeyException;
public static byte[] b(String str, byte[] bArr) throws InvalidKeyException {
try {
byte[] bytes = str.getBytes("UTF-8");
return com.bilibili.nativelibrary.a.a(new SecretKeySpec(Arrays.copyOf(bytes, 16), "AES"), b(str), bArr);
} catch (UnsupportedEncodingException | Exception unused) {
return bArr;
}
}
public static byte[] c(String str, byte[] bArr) throws InvalidKeyException {
try {
byte[] bytes = str.getBytes("UTF-8");
return com.bilibili.nativelibrary.a.b(new SecretKeySpec(Arrays.copyOf(bytes, 16), "AES"), b(str), bArr);
} catch (UnsupportedEncodingException | Exception unused) {
return bArr;
}
}
@Deprecated
public static String d() {
return e("android");
}
public static String e(String str) {
return a(str);
}
public static String f(String str, int i2, int i3) {
return ao(str, i2, i3);
}
public static SignedQuery g(Map<String, String> map) {
return s(map == null ? new TreeMap() : new TreeMap(map));
}
public static native int getCpuCount();
@Deprecated
public static native int getCpuId();
public static SignedQuery h(Map<String, String> map, int i2, int i3) {
TreeMap treeMap;
if (map == null) {
treeMap = new TreeMap();
} else {
treeMap = new TreeMap(map);
}
return so(treeMap, i2, i3);
}
public static SignedQuery i(Map<String, String> map, @NonNull byte[] bArr) {
TreeMap treeMap;
if (map == null) {
treeMap = new TreeMap();
} else {
treeMap = new TreeMap(map);
}
return so(treeMap, bArr);
}
static native SignedQuery s(SortedMap<String, String> sortedMap);
static native SignedQuery so(SortedMap<String, String> sortedMap, int i2, int i3);
static native SignedQuery so(SortedMap<String, String> sortedMap, byte[] bArr);
}
该类是样本应用中的一个JNI桥接类，主要作用是为Java层提供对native层加密/签名/系统信息处理等能力的访问。
而我们的目标函数在LibBili类里的g函数使用了它。
public static SignedQuery g(Map<String, String> map) {
return s(map == null ? new TreeMap() : new TreeMap(map));
}
对 g 方法做hook，参考代码如下
function hookS() {
setTimeout(function () {
Java.perform(function () {
let LibBili = Java.use("com.bilibili.nativelibrary.LibBili");
let Map = Java.use("java.util.HashMap");
LibBili["g"].implementation = function (map) {
console.log('g is called' + ' map: ' + Java.cast(map, Map));
let ret = this.g(map);
console.log('g ret value is ' + ret + '\n');
return ret;
};
});
}, 3000);
}
hookS();
输出有很多，随便取一条
g is called map: {build=6180500, mobi_app=android, channel=shenma069, actionKey=appkey, appkey=1d8b6e7d45233436, s_locale=zh_CN, c_locale=zh_CN, device=android, hash=97fa29af-c53f-0712-1701-5271-ac82-ba11-8af1-6e8a-943b-5e5b, platform=android, statistics={"appId":1,"platform":3,"version":"6.18.0","abtest":""}}
g ret value is actionKey=appkey&appkey=1d8b6e7d45233436&build=6180500&c_locale=zh_CN&channel=shenma069&device=android&hash=97fa29af-c53f-0712-1701-5271-ac82-ba11-8af1-6e8a-943b-5e5b&mobi_app=android&platform=android&s_locale=zh_CN&statistics=%7B%22appId%22%3A1%2C%22platform%22%3A3%2C%22version%22%3A%226.18.0%22%2C%22abtest%22%3A%22%22%7D&ts=1752200177&sign=19d4104c2956d248dc02fb12b8c076de
返回值是SignedQuery对象，打印发现直接返回了字符串，这是因为SignedQuery里重写了toString方法，如下所示：
package com.bilibili.nativelibrary;
import android.text.TextUtils;
import com.huawei.hms.framework.common.ContainerUtils;
import java.io.UnsupportedEncodingException;
import java.util.Map;
import java.util.SortedMap;
import java.util.TreeMap;
import u.aly.cv;
public final class SignedQuery {
private static final char[] f14891c = "0123456789ABCDEF".toCharArray();
public final String a;
public final String b;
public SignedQuery(String str, String str2) {
this.a = str;
this.b = str2;
}
public String toString() {
String str = this.a;
if (str == null) {
return "";
}
if (this.b == null) {
return str;
}
return this.a + "&sign=" + this.b;
}
}
使用Frida Call主动调用一下
function callS() {
Java.perform(function () {
let LibBili = Java.use("com.bilibili.nativelibrary.LibBili");
let TreeMap = Java.use("java.util.TreeMap");
var map = TreeMap.$new();
map.put("build", "6180500");
map.put("mobi_app", "android");
map.put("channel", "shenma069");
map.put("appkey", "1d8b6e7d45233436");
map.put("s_locale", "zh_CN");
let result = LibBili.s(map);
console.log("ret: " + result);
});
}
callS();
其中map的键值对可以多一些也可以少一些。然后经过多次调用
ret: appkey=1d8b6e7d45233436&build=6180500&channel=shenma069&device=&mobi_app=android&s_locale=zh_CN&ts=1752201522&sign=34bd4782c3ac27818b28140f10acdfe7
ret: appkey=1d8b6e7d45233436&build=6180500&channel=shenma069&device=android&mobi_app=android&s_locale=zh_CN&ts=1752201525&sign=08a09f59ffa5622895206c837947444c
ret: appkey=1d8b6e7d45233436&build=6180500&channel=shenma069&device=android&mobi_app=android&s_locale=zh_CN&ts=1752201526&sign=0c769ea4759665c8fac80c8fd49f0f12
ret: appkey=1d8b6e7d45233436&build=6180500&channel=shenma069&device=android&mobi_app=android&s_locale=zh_CN&ts=1752201529&sign=04e9de2cba349039d74cdb65c0f643ad
ret: appkey=1d8b6e7d45233436&build=6180500&channel=shenma069&device=android&mobi_app=android&s_locale=zh_CN&ts=1752201530&sign=ea183695d071bbda958745a20d09e9ed
可以观察到，返回的值由八个键值对组成，六个来自输入，ts是时间戳，还有一个就是sign。本篇的目标就是使用Unidbg复现对sign的调用。
三、初始化
初始化代码如下
package com.test3;
import com.github.unidbg.AndroidEmulator;
import com.github.unidbg.Emulator;
import com.github.unidbg.arm.backend.Unicorn2Factory;
import com.github.unidbg.file.FileResult;
import com.github.unidbg.file.IOResolver;
import com.github.unidbg.linux.android.AndroidEmulatorBuilder;
import com.github.unidbg.linux.android.AndroidResolver;
import com.github.unidbg.linux.android.dvm.AbstractJni;
import com.github.unidbg.linux.android.dvm.DalvikModule;
import com.github.unidbg.linux.android.dvm.DvmClass;
import com.github.unidbg.linux.android.dvm.VM;
import com.github.unidbg.memory.Memory;
import java.io.File;
public class TEST3 extends AbstractJni implements IOResolver<AndroidFileIO> {
private final AndroidEmulator emulator;
private final DvmClass LibBili;
private final VM vm;
public TEST3() {
emulator = AndroidEmulatorBuilder
.for32Bit()
.addBackendFactory(new Unicorn2Factory(true))
.setProcessName("tv.danmaku.bili")
.build();
Memory memory = emulator.getMemory();
memory.setLibraryResolver(new AndroidResolver(23));
vm = emulator.createDalvikVM(new File("D:\\Compilation_Enviroment\\unidbg-master\\unidbg-android\\src\\test\\java\\com\\test3\\bilibili.apk"));
vm.setJni(this);
vm.setVerbose(true);
emulator.getSyscallHandler().addIOResolver(this);
//加载Dalvik的模块
DalvikModule dm = vm.loadLibrary("bili", true);
//加载目标类
LibBili = vm.resolveClass("com.bilibili.nativelibrary.LibBili");
dm.callJNI_OnLoad(emulator);
}
public static void main(String[] args) {
TEST3 test3 = new TEST3();
}
@Override
public FileResult resolve(Emulator emulator, String pathname, int oflags) {
System.out.println("lilac open: " + pathname);
return null;
}
}
因为担心可能存在文件访问，所以这里继承了 IOResolver，补文件访问的相关处理见 《补文件访问》专题的相关文章。
运行代码，发现并没有像参考文章中报错，但是如果加了多线程处理的逻辑，输出会有变化。
package com.test3;
import com.github.unidbg.AndroidEmulator;
import com.github.unidbg.Emulator;
import com.github.unidbg.arm.backend.Unicorn2Factory;
import com.github.unidbg.file.FileResult;
import com.github.unidbg.file.IOResolver;
import com.github.unidbg.linux.android.AndroidEmulatorBuilder;
import com.github.unidbg.linux.android.AndroidResolver;
import com.github.unidbg.linux.android.dvm.AbstractJni;
import com.github.unidbg.linux.android.dvm.DalvikModule;
import com.github.unidbg.linux.android.dvm.DvmClass;
import com.github.unidbg.linux.android.dvm.VM;
import com.github.unidbg.memory.Memory;
import java.io.File;
public class TEST3 extends AbstractJni implements IOResolver<AndroidFileIO> {
private final AndroidEmulator emulator;
private final DvmClass LibBili;
private final VM vm;
public TEST3() {
emulator = AndroidEmulatorBuilder
.for32Bit()
.addBackendFactory(new Unicorn2Factory(true))
.setProcessName("tv.danmaku.bili")
.build();
Memory memory = emulator.getMemory();
memory.setLibraryResolver(new AndroidResolver(23));
vm = emulator.createDalvikVM(new File("D:\\Compilation_Enviroment\\unidbg-master\\unidbg-android\\src\\test\\java\\com\\test3\\bilibili.apk"));
vm.setJni(this);
vm.setVerbose(true);
// add
emulator.getBackend().registerEmuCountHook(10000); // 设置执行多少条指令切换一次线程
emulator.getSyscallHandler().setVerbose(true);
emulator.getSyscallHandler().setEnableThreadDispatcher(true);
emulator.getSyscallHandler().addIOResolver(this);
//加载Dalvik的模块
DalvikModule dm = vm.loadLibrary("bili", true);
//加载目标类
LibBili = vm.resolveClass("com.bilibili.nativelibrary.LibBili");
dm.callJNI_OnLoad(emulator);
}
public static void main(String[] args) {
TEST3 test3 = new TEST3();
}
@Override
public FileResult resolve(Emulator emulator, String pathname, int oflags) {
System.out.println("lilac open: " + pathname);
return null;
}
}
参考文章中的报错试因为，如果样本调用了多线程创建函数 pthread_create，但Unidbg未开启多线程处理逻辑，就会报这个错，所以需要开启多线程逻辑。代码如上。
而这个报错背后的逻辑，是因为样本在调用 pthread_create 创建线程时，最终会走到clone系统调用，在Unidbg中对应于 bionic_clone 函数，对应于下面的逻辑
if (threadDispatcherEnabled) {
if (verbose) {
System.out.printf("bionic_clone fn=%s%n", fn);
}
emulator.getThreadDispatcher().addThread(new MarshmallowThread(emulator, fn, arg, ctid, threadId));
ctid.setInt(0, threadId);
return threadId;
}
emulator.getMemory().setErrno(UnixEmulator.ENOMEM);
return -UnixEmulator.ENOMEM;
即如果打开了多线程，就添加新线程，进入调度逻辑，否则就设置错误码为 ENOMEM ，它进而导致 Out of memory 的报错，提醒我们开启多线程处理逻辑。
public interface UnixEmulator {
int EPERM = 1; /* Operation not permitted */
int ENOENT = 2; /* No such file or directory */
int ESRCH = 3; /* No such process */
int EINTR = 4; /* Interrupted system call */
int EBADF = 9; /* Bad file descriptor */
int EAGAIN = 11; /* Resource temporarily unavailable */
int ENOMEM = 12; /* Cannot allocate memory */
int EACCES = 13; /* Permission denied */
int EFAULT = 14; /* Bad address */
int EEXIST = 17; /* File exists */
int ENOTDIR = 20; /* Not a directory */
int EINVAL = 22; /* Invalid argument */
int ENOTTY = 25; /* Inappropriate ioctl for device */
int ENOSYS = 38; /* Function not implemented */
int ENOATTR = 93; /* Attribute not found */
int EOPNOTSUPP = 95; /* Operation not supported on transport endpoint */
int EAFNOSUPPORT = 97; /* Address family not supported by protocol family */
int EADDRINUSE = 98; /* Address already in use */
int ECONNREFUSED = 111; /* Connection refused */
}
言归正传，继续运行，依然没有报错，Unidbg的日志输出中可以看到 s 方法，它来自于动态注册。
(Ljava/util/SortedMap;)Lcom/bilibili/nativelibrary/SignedQuery; 就是待会调用它的签名。
JNIEnv->RegisterNatives(com/bilibili/nativelibrary/LibBili, RW@0x1200b004[libbili.so]0xb004, 8) was called from RX@0x12001b8f[libbili.so]0x1b8f
RegisterNative(com/bilibili/nativelibrary/LibBili, a(Ljava/lang/String;)Ljava/lang/String;, RX@0x12001c7d[libbili.so]0x1c7d)
RegisterNative(com/bilibili/nativelibrary/LibBili, ao(Ljava/lang/String;II)Ljava/lang/String;, RX@0x12001c83[libbili.so]0x1c83)
RegisterNative(com/bilibili/nativelibrary/LibBili, b(Ljava/lang/String;)Ljavax/crypto/spec/IvParameterSpec;, RX@0x12001c91[libbili.so]0x1c91)
RegisterNative(com/bilibili/nativelibrary/LibBili, s(Ljava/util/SortedMap;)Lcom/bilibili/nativelibrary/SignedQuery;, RX@0x12001c97[libbili.so]0x1c97)
RegisterNative(com/bilibili/nativelibrary/LibBili, so(Ljava/util/SortedMap;II)Lcom/bilibili/nativelibrary/SignedQuery;, RX@0x12001c9d[libbili.so]0x1c9d)
RegisterNative(com/bilibili/nativelibrary/LibBili, so(Ljava/util/SortedMap;[B)Lcom/bilibili/nativelibrary/SignedQuery;, RX@0x12001cab[libbili.so]0x1cab)
RegisterNative(com/bilibili/nativelibrary/LibBili, getCpuCount()I, RX@0x12001cb3[libbili.so]0x1cb3)
RegisterNative(com/bilibili/nativelibrary/LibBili, getCpuId()I, RX@0x12001cb7[libbili.so]0x1cb7)
四、发起调用
我们前面的例子里，参数和返回值都是基本类型、字符串、字节数组，直接传入就可以调用
而这里比较特殊，是个map，读者可能也想到这样调用
public String callS(){
TreeMap<String, String> map = new TreeMap<>();
map.put("build", "6180500");
map.put("mobi_app", "android");
map.put("channel", "shenma069");
map.put("appkey", "1d8b6e7d45233436");
map.put("s_locale", "zh_CN");
map.put("device", "android");
String ret = LibBili.callStaticJniMethodObject(emulator, "s(Ljava/util/SortedMap;)Lcom/bilibili/nativelibrary/SignedQuery;", map).getValue().toString();
return ret;
}
运行发现报错 Unsupported arg
Exception in thread "main" java.lang.IllegalStateException: Unsupported arg: {appkey=1d8b6e7d45233436, build=6180500, channel=shenma069, device=android, mobi_app=android, s_locale=zh_CN}
at com.github.unidbg.Module.emulateFunction(Module.java:160)
at com.github.unidbg.linux.android.dvm.DvmObject.callJniMethod(DvmObject.java:135)
at com.github.unidbg.linux.android.dvm.DvmClass.callStaticJniMethodObject(DvmClass.java:316)
at com.test3.TEST3.callS(TEST3.java:69)
at com.test3.TEST3.main(TEST3.java:52)
接下里完整地学习一下 Unidbg 中JNI对象的方法，

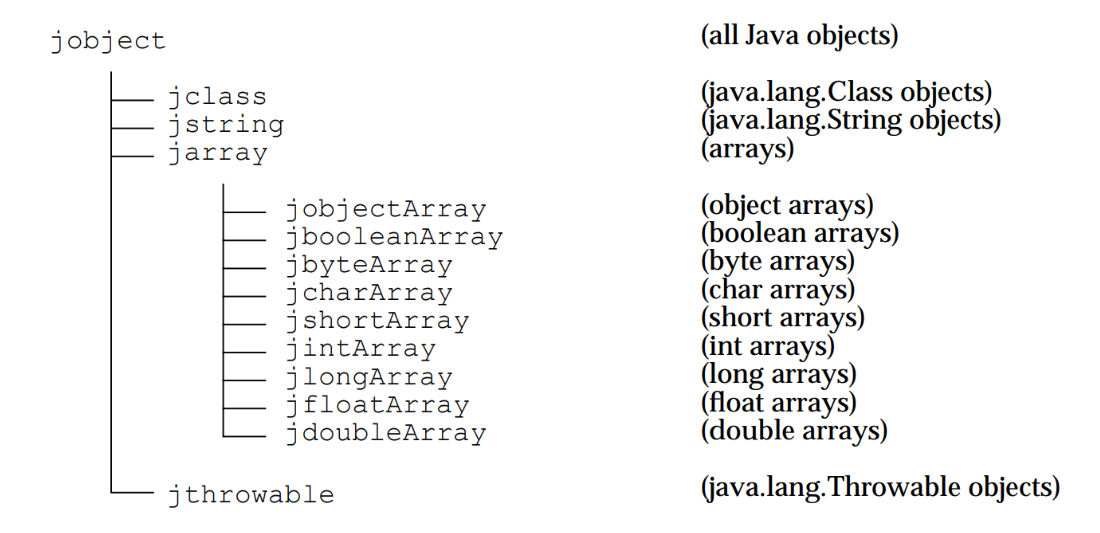

首先根据 JNI 标准，JNI 方法的返回值，以及 JAVA 传递到 Native 的对象，都是 JObject ，其中最常用的一些类还做了细分，具体情况如下。
jclass是类对象，jstring 是字符串，jarray 以及其他细分是各种各样的数组， jthrowable 是 JNI 异常处理中使用到的对象。
在Unidbg中，做了几乎完整的等价模拟和映射。
- jobject 对应于 DvmOgject
- jclass 对应于 DvmClass
- jstring 对应于 StringObject
- jarray 对应于 BaseArray
- jobjectArray 对应于 ByteArray
- jshortArray 对应于 ShortArray
- jintArray 对应于 IntArray
在补 JNI 调用时，如果返回值是String，需要封装为 StringObject ，比如前文就有一个片段，返回了字符串。
case "java/lang/Class->getSimpleName()Ljava/lang/String;":{
String className = ((DvmClass) dvmObject).getClassName();
String[] name = className.split("/");
return new StringObject(vm, name[name.length - 1]);
}
在函数调用时，为什么字符串、字节数组这样的对象，我们不需要用StringObject 以及 ByteArray 包装？
callXXX 系列方法内部调用了 callJniMethod 方法，不妨解析一下这个代码。
protected static Number callJniMethod(Emulator<?> emulator, VM vm, DvmClass objectType, DvmObject<?> thisObj, String method, Object...args) {
UnidbgPointer fnPtr = objectType.findNativeFunction(emulator, method);
vm.addLocalObject(thisObj);
List<Object> list = new ArrayList<>(10);
list.add(vm.getJNIEnv());
list.add(thisObj.hashCode());
if (args != null) {
for (Object arg : args) {
if (arg instanceof Boolean) {
list.add((Boolean) arg ? VM.JNI_TRUE : VM.JNI_FALSE);
continue;
} else if(arg instanceof Hashable) {
list.add(arg.hashCode()); // dvm object
if(arg instanceof DvmObject) {
vm.addLocalObject((DvmObject<?>) arg);
}
continue;
} else if (arg instanceof DvmAwareObject ||
arg instanceof String ||
arg instanceof byte[] ||
arg instanceof short[] ||
arg instanceof int[] ||
arg instanceof float[] ||
arg instanceof double[] ||
arg instanceof Enum) {
DvmObject<?> obj = ProxyDvmObject.createObject(vm, arg);
list.add(obj.hashCode());
vm.addLocalObject(obj);
continue;
}
list.add(arg);
}
}
return Module.emulateFunction(emulator, fnPtr.peer, list.toArray());
}
它首先根据方法签名找到对应的函数地址，这个逻辑在 findNativeFunction里。
UnidbgPointer fnPtr = objectType.findNativeFunction(emulator, method);
接着开始处理函数参数，首先添加 JNIEnv、Jobject/Jclass 作为第一、二个参数，这是 JNI 规范的默认要求。
List<Object> list = new ArrayList<>(10);
list.add(vm.getJNIEnv());
list.add(thisObj.hashCode());
然后处理函数自己的入参
if (args != null) {
for (Object arg : args) {
if (arg instanceof Boolean) {
list.add((Boolean) arg ? VM.JNI_TRUE : VM.JNI_FALSE);
continue;
} else if(arg instanceof Hashable) {
list.add(arg.hashCode()); // dvm object
if(arg instanceof DvmObject) {
vm.addLocalObject((DvmObject<?>) arg);
}
continue;
} else if (arg instanceof DvmAwareObject ||
arg instanceof String ||
arg instanceof byte[] ||
arg instanceof short[] ||
arg instanceof int[] ||
arg instanceof float[] ||
arg instanceof double[] ||
arg instanceof Enum) {
DvmObject<?> obj = ProxyDvmObject.createObject(vm, arg);
list.add(obj.hashCode());
vm.addLocalObject(obj);
continue;
}
list.add(arg);
}
}
其中包含 Boolean 转为 01，添加局部引用，判断是否已经是 DvmObject 等一系列逻辑，再下面就是对常见类型的包装，如果用户传入 String 、byteArray等类型，会通过 ProxyDvmObject.createObject 自动装箱为 Unidbg JNI 中对应的类型。我们注意到， callJniMethod 没有处理参数是Map 的情况，所以没能经过自动装箱。
public static DvmObject<?> createObject(VM vm, Object value) {
if (value == null) {
return null;
}
if (value instanceof Class<?>) {
return getObjectType(vm, (Class<?>) value);
}
if (value instanceof DvmObject) {
return (DvmObject<?>) value;
}
if (value instanceof byte[]) {
return new ByteArray(vm, (byte[]) value);
}
if (value instanceof short[]) {
return new ShortArray(vm, (short[]) value);
}
if (value instanceof int[]) {
return new IntArray(vm, (int[]) value);
}
if (value instanceof float[]) {
return new FloatArray(vm, (float[]) value);
}
if (value instanceof double[]) {
return new DoubleArray(vm, (double[]) value);
}
if (value instanceof String) {
return new StringObject(vm, (String) value);
}
Class<?> clazz = value.getClass();
if (clazz.isArray()) {
if (clazz.getComponentType().isPrimitive()) {
throw new UnsupportedOperationException(String.valueOf(value));
}
Object[] array = (Object[]) value;
DvmObject<?>[] dvmArray = new DvmObject[array.length];
for (int i = 0; i < array.length; i++) {
dvmArray[i] = createObject(vm, array[i]);
}
return new ArrayObject(dvmArray);
}
return new ProxyDvmObject(vm, value);
}
但事实上， createObject 除了可以处理 String、array这样的普通对象，也可以处理 map 或其他对象类型。来看 ProxyDvmObject 对象的构造逻辑，它会对类的父类以及接口类做解析，嵌套式的getObjectType，最后 resolveClass 再 newObject 得到最终的 DvmObject。
private ProxyDvmObject(VM vm, Object value) {
super(getObjectType(vm, value.getClass()), value);
}
private static DvmClass getObjectType(VM vm, Class<?> clazz) {
Class<?> superClass = clazz.getSuperclass();
DvmClass[] interfaces = new DvmClass[clazz.getInterfaces().length + (superClass == null ? 0 : 1)];
int i = 0;
if (superClass != null) {
interfaces[i++] = getObjectType(vm, superClass);
}
for (Class<?> cc : clazz.getInterfaces()) {
interfaces[i++] = getObjectType(vm, cc);
}
return vm.resolveClass(clazz.getName().replace('.', '/'), interfaces);
}
因此我们手动调用它处理 map
public String callS(){
TreeMap<String, String> map = new TreeMap<>();
map.put("build", "6180500");
map.put("mobi_app", "android");
map.put("channel", "shenma069");
map.put("appkey", "1d8b6e7d45233436");
map.put("s_locale", "zh_CN");
DvmObject<?> mapObject = ProxyDvmObject.createObject(vm, map);
String ret = LibBili.callStaticJniMethodObject(emulator, "s(Ljava/util/SortedMap;)Lcom/bilibili/nativelibrary/SignedQuery;", mapObject).getValue().toString();
return ret;
}
不妨总结一下补 JNI 的形式要求
- 基本类型直接传递
- 字符串、字节数组等基本对象直接传递，其内部会做封装，也可以自己调用 new StringObject(vm, str)、**new ByteArray(vm, value)**等。
- JDK 标准库对象，如 HashMap、JsonObject 等，使用 ProxyDvmObject.createObject(vm, value) 处理。
- 非 JDK 标准对象，如 Android Context、SharedPreference 等，使用 vm.resolveClass(vm, className).newObject(vlaue) 处理。
接下来按照这样的形式要求去实践补环境
五、补环境
运行报错
[13:30:16 216] WARN [com.github.unidbg.AbstractEmulator] (AbstractEmulator:417) - emulate RX@0x12001c97[libbili.so]0x1c97 exception sp=unidbg@0xe4fff648, msg=java/util/Map->isEmpty()Z, offset=9ms @ Runnable|Function32 address=0x12001c97, arguments=[unidbg@0xfffe12a0, -288775324, 2100961961]
Exception in thread "main" java.lang.NullPointerException: Cannot invoke "com.github.unidbg.linux.android.dvm.DvmObject.getValue()" because the return value of "com.github.unidbg.linux.android.dvm.DvmClass.callStaticJniMethodObject(com.github.unidbg.Emulator, String, Object[])" is null
at com.test3.TEST3.callS(TEST3.java:68)
at com.test3.TEST3.main(TEST3.java:50)
isEmpty 用于判断 Map 是否为空，取出这个 dvmObject 对应的 map 对象，调用它的 isEmpty 方法。
@Override
public boolean callBooleanMethod(BaseVM vm, DvmObject<?> dvmObject, String signature, VarArg varArg) {
switch (signature){
case "java/util/Map->isEmpty()Z":{
Map map = (Map) dvmObject.getValue();
return map.isEmpty();
}
}
return super.callBooleanMethod(vm, dvmObject, signature, varArg);
}
继续运行
[13:48:32 772] WARN [com.github.unidbg.AbstractEmulator] (AbstractEmulator:417) - emulate RX@0x12001c97[libbili.so]0x1c97 exception sp=unidbg@0xe4fff648, msg=java/util/Map->get(Ljava/lang/Object;)Ljava/lang/Object;, offset=8ms @ Runnable|Function32 address=0x12001c97, arguments=[unidbg@0xfffe12a0, -288775324, 2100961961]
Exception in thread "main" java.lang.NullPointerException: Cannot invoke "com.github.unidbg.linux.android.dvm.DvmObject.getValue()" because the return value of "com.github.unidbg.linux.android.dvm.DvmClass.callStaticJniMethodObject(com.github.unidbg.Emulator, String, Object[])" is null
at com.test3.TEST3.callS(TEST3.java:69)
at com.test3.TEST3.main(TEST3.java:51)
同样实现它。不以 V 结尾的 JNI 函数通过varArg 取参数，以 V 结尾的 JNI 函数中通过carList取参数。
getObjectArg(index) 用于获取第 index 个 object 参数，如果是 int、long 等类型需要使用对应的 getintArg 、getlongArg 等等。
@Override
public DvmObject<?> callObjectMethod(BaseVM vm, DvmObject<?> dvmObject, String signature, VarArg varArg) {
switch (signature){
case "java/util/Map->get(Ljava/lang/Object;)Ljava/lang/Object;":{
Map map = (Map) dvmObject.getValue();
// 不要忘了getvalue
Object key = varArg.getObjectArg(0).getValue();
return ProxyDvmObject.createObject(vm, map.get(key));
}
}
return super.callObjectMethod(vm, dvmObject, signature, varArg);
}
继续运行
[14:07:40 615] WARN [com.github.unidbg.AbstractEmulator] (AbstractEmulator:417) - emulate RX@0x12001c97[libbili.so]0x1c97 exception sp=unidbg@0xe4fff610, msg=java/util/Map->put(Ljava/lang/Object;Ljava/lang/Object;)Ljava/lang/Object;, offset=23ms @ Runnable|Function32 address=0x12001c97, arguments=[unidbg@0xfffe12a0, -288775324, 2100961961]
Exception in thread "main" java.lang.NullPointerException: Cannot invoke "com.github.unidbg.linux.android.dvm.DvmObject.getValue()" because the return value of "com.github.unidbg.linux.android.dvm.DvmClass.callStaticJniMethodObject(com.github.unidbg.Emulator, String, Object[])" is null
at com.test3.TEST3.callS(TEST3.java:69)
at com.test3.TEST3.main(TEST3.java:51)
同样还是实现它
case "java/util/Map->put(Ljava/lang/Object;Ljava/lang/Object;)Ljava/lang/Object;":{
Map map = (Map) dvmObject.getValue();
Object key = varArg.getObjectArg(0).getValue();
Object value = varArg.getObjectArg(1).getValue();
return ProxyDvmObject.createObject(vm, map.put(key, value));
}
继续运行，这次报错比较特殊
[14:18:20 309] WARN [com.github.unidbg.AbstractEmulator] (AbstractEmulator:417) - emulate RX@0x12001c97[libbili.so]0x1c97 exception sp=unidbg@0xe4fff658, msg=com/bilibili/nativelibrary/SignedQuery->r(Ljava/util/Map;)Ljava/lang/String;, offset=16ms @ Runnable|Function32 address=0x12001c97, arguments=[unidbg@0xfffe12a0, -288775324, 2100961961]
Exception in thread "main" java.lang.NullPointerException: Cannot invoke "com.github.unidbg.linux.android.dvm.DvmObject.getValue()" because the return value of "com.github.unidbg.linux.android.dvm.DvmClass.callStaticJniMethodObject(com.github.unidbg.Emulator, String, Object[])" is null
at com.test3.TEST3.callS(TEST3.java:69)
at com.test3.TEST3.main(TEST3.java:51)
这是样本中自定义的函数，在JADX中看它的代码逻辑。
static String r(Map<String, String> map) {
if (!(map instanceof SortedMap)) {
map = new TreeMap(map);
}
StringBuilder sb = new StringBuilder(256);
for (Map.Entry<String, String> entry : map.entrySet()) {
String key = entry.getKey();
if (!TextUtils.isEmpty(key)) {
sb.append(b(key));
sb.append(ContainerUtils.KEY_VALUE_DELIMITER);
String value = entry.getValue();
sb.append(value == null ? "" : b(value));
sb.append(ContainerUtils.FIELD_DELIMITER);
}
}
int length = sb.length();
if (length > 0) {
sb.deleteCharAt(length - 1);
}
if (length == 0) {
return null;
}
return sb.toString();
}

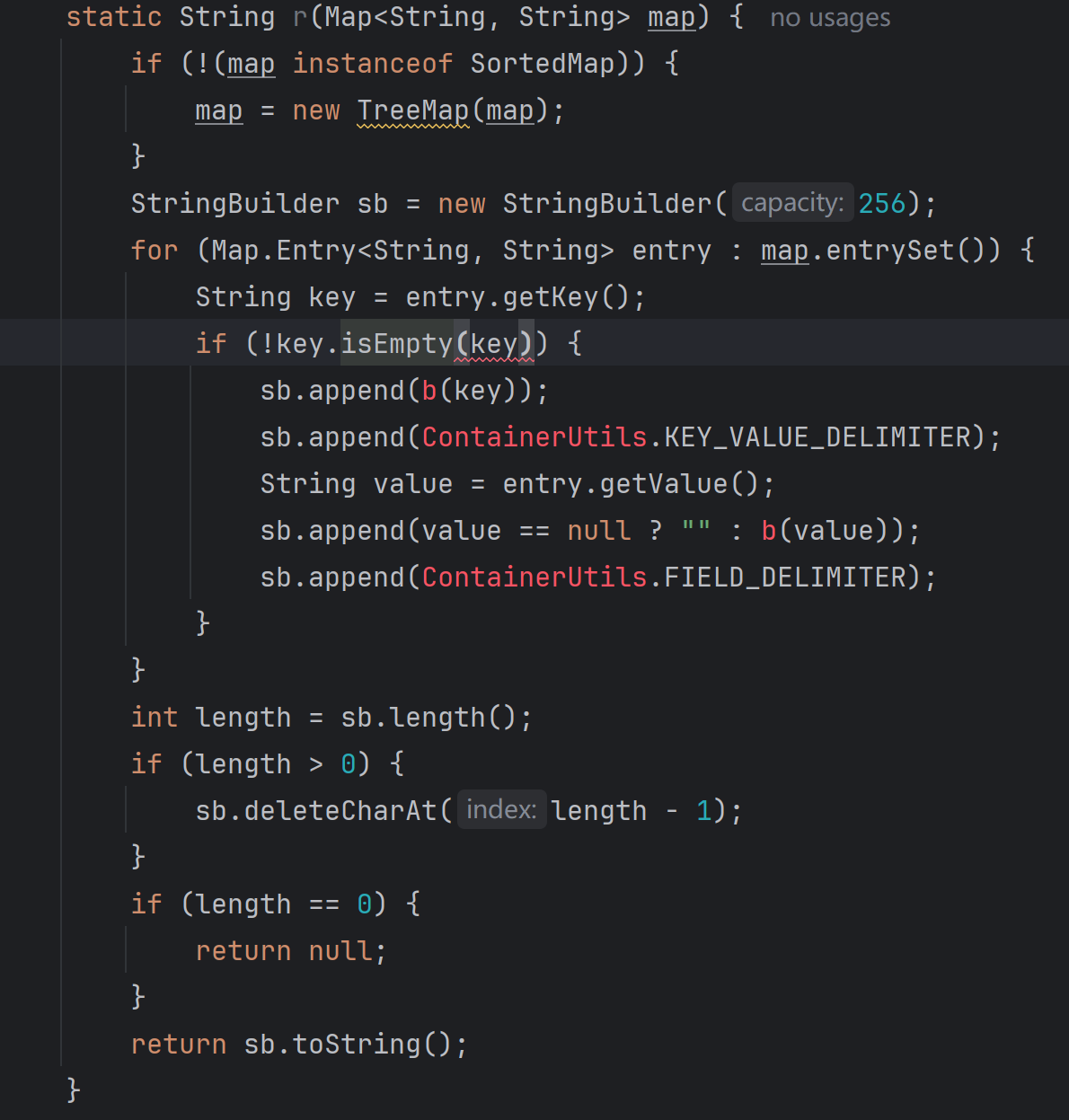

将其直接粘贴到 Unidbg 里，但似乎有些问题
导入 SortedMap
import java.util.SortedMap;
TextUtils 是 Android FrameWork 中用于处理文本的工具类，TextUtils.isEmpty 和 string.isEmpty功能类似，这里直接替换。
b 方法是 SignedQuery 类里另一个方法，我们干脆把 SignedQuery 以及 ContainerUtils 这两个类从 JADX 中拷贝过来，以免遗漏，在这个过程中发现依赖 cv.m。
这个字段是 15，直接硬编码处理一下
移过来的 ContainerUtils 内容如下
package com.Bili;
import java.util.Iterator;
import java.util.List;
import java.util.Map;
import java.util.Set;
public class ContainerUtils {
public static final String FIELD_DELIMITER = "&";
public static final String KEY_VALUE_DELIMITER = "=";
public static <K, V> boolean equals(Map<K, V> map, Map<K, V> map2) {
if (map == map2) {
return true;
}
boolean z = false;
if (map == null || map2 == null || map.size() != map2.size()) {
return false;
}
Iterator<Map.Entry<K, V>> it = map.entrySet().iterator();
while (true) {
if (!it.hasNext()) {
break;
}
Map.Entry<K, V> next = it.next();
if (map2.get(next.getKey()) != next.getValue()) {
z = true;
break;
}
}
return !z;
}
public static <K, V> int hashCode(Map<K, V> map) {
return toString(map).hashCode();
}
public static <K> String toString(List<K> list) {
if (list == null) {
return "";
}
StringBuilder sb = new StringBuilder();
int i2 = 0;
for (K k : list) {
int i3 = i2 + 1;
if (i2 > 0) {
sb.append(FIELD_DELIMITER);
}
sb.append(k.toString());
i2 = i3;
}
return sb.toString();
}
public static <K, V> String toString(Map<K, V> map) {
if (map == null) {
return "";
}
StringBuilder sb = new StringBuilder();
int i2 = 0;
for (Map.Entry<K, V> entry : map.entrySet()) {
int i3 = i2 + 1;
if (i2 > 0) {
sb.append(FIELD_DELIMITER);
}
sb.append(entry.getKey().toString());
sb.append(KEY_VALUE_DELIMITER);
sb.append(entry.getValue().toString());
i2 = i3;
}
return sb.toString();
}
public static <K> String toString(Set<K> set) {
if (set == null) {
return "";
}
StringBuilder sb = new StringBuilder();
int i2 = 0;
for (K k : set) {
int i3 = i2 + 1;
if (i2 > 0) {
sb.append(FIELD_DELIMITER);
}
sb.append(k.toString());
i2 = i3;
}
return sb.toString();
}
}
移过来的 SignedQuery 如下
package com.Bili;
import java.io.UnsupportedEncodingException;
import java.util.Map;
import java.util.SortedMap;
import java.util.TreeMap;
public final class SignedQuery {
/* renamed from: c reason: collision with root package name */
private static final char[] f14891c = "0123456789ABCDEF".toCharArray();
public final String a;
public final String b;
public SignedQuery(String str, String str2) {
this.a = str;
this.b = str2;
}
private static boolean a(char c2, String str) {
return (c2 >= 'A' && c2 <= 'Z') || (c2 >= 'a' && c2 <= 'z') || !((c2 < '0' || c2 > '9') && "-_.~".indexOf(c2) == -1 && (str == null || str.indexOf(c2) == -1));
}
static String b(String str) {
return c(str, null);
}
static String c(String str, String str2) {
StringBuilder sb = null;
if (str == null) {
return null;
}
int length = str.length();
int i2 = 0;
while (i2 < length) {
int i3 = i2;
while (i3 < length && a(str.charAt(i3), str2)) {
i3++;
}
if (i3 == length) {
if (i2 == 0) {
return str;
}
sb.append((CharSequence) str, i2, length);
return sb.toString();
}
if (sb == null) {
sb = new StringBuilder();
}
if (i3 > i2) {
sb.append((CharSequence) str, i2, i3);
}
i2 = i3 + 1;
while (i2 < length && !a(str.charAt(i2), str2)) {
i2++;
}
try {
byte[] bytes = str.substring(i3, i2).getBytes("UTF-8");
int length2 = bytes.length;
for (int i4 = 0; i4 < length2; i4++) {
sb.append('%');
sb.append(f14891c[(bytes[i4] & 240) >> 4]);
sb.append(f14891c[bytes[i4] & 15]);
}
} catch (UnsupportedEncodingException e) {
throw new AssertionError(e);
}
}
return sb == null ? str : sb.toString();
}
static String r(Map<String, String> map) {
if (!(map instanceof SortedMap)) {
map = new TreeMap(map);
}
StringBuilder sb = new StringBuilder(256);
for (Map.Entry<String, String> entry : map.entrySet()) {
String key = entry.getKey();
if (!key.isEmpty()) {
sb.append(b(key));
sb.append(ContainerUtils.KEY_VALUE_DELIMITER);
String value = entry.getValue();
sb.append(value == null ? "" : b(value));
sb.append(ContainerUtils.FIELD_DELIMITER);
}
}
int length = sb.length();
if (length > 0) {
sb.deleteCharAt(length - 1);
}
if (length == 0) {
return null;
}
return sb.toString();
}
public String toString() {
String str = this.a;
if (str == null) {
return "";
}
if (this.b == null) {
return str;
}
return this.a + "&sign=" + this.b;
}
}
然后就接着补 JNI 调用
@Override
public DvmObject<?> callStaticObjectMethod(BaseVM vm, DvmClass dvmClass, String signature, VarArg varArg) {
switch (signature){
case "com/bilibili/nativelibrary/SignedQuery->r(Ljava/util/Map;)Ljava/lang/String;":{
Map map = (Map) varArg.getObjectArg(0).getValue();
return new StringObject(vm, SignedQuery.r(map));
}
}
return super.callStaticObjectMethod(vm, dvmClass, signature, varArg);
}
接着继续运行，报错
[15:00:04 025] WARN [com.github.unidbg.AbstractEmulator] (AbstractEmulator:417) - emulate RX@0x120c679b[libc.so]0x1b79b exception sp=unidbg@0xe4fff658, msg=com/bilibili/nativelibrary/SignedQuery-><init>(Ljava/lang/String;Ljava/lang/String;)V, offset=7ms @ Runnable|Function32 address=0x12001c97, arguments=[unidbg@0xfffe12a0, -288775324, 2100961961]
Exception in thread "main" java.lang.NullPointerException: Cannot invoke "com.github.unidbg.linux.android.dvm.DvmObject.getValue()" because the return value of "com.github.unidbg.linux.android.dvm.DvmClass.callStaticJniMethodObject(com.github.unidbg.Emulator, String, Object[])" is null
at com.test3.TEST3.callS(TEST3.java:69)
at com.test3.TEST3.main(TEST3.java:51)
补环境
@Override
public DvmObject<?> newObject(BaseVM vm, DvmClass dvmClass, String signature, VarArg varArg) {
switch (signature){
case "com/bilibili/nativelibrary/SignedQuery-><init>(Ljava/lang/String;Ljava/lang/String;)V":{
String arg1 = varArg.getObjectArg(0).getValue().toString();
String arg2 = varArg.getObjectArg(1).getValue().toString();
return vm.resolveClass("com/bilibili/nativelibrary/SignedQuery").newObject(new SignedQuery(arg1, arg2));
}
}
return super.newObject(vm, dvmClass, signature, varArg);
}
补完之后，即可跑通，打印结果
call s result: appkey=1d8b6e7d45233436&build=6180500&channel=shenma069&device=android&mobi_app=android&s_locale=zh_CN&ts=1752390908&sign=2796f4e6df84ead8fe0ff512bee8e24b
符合预期
附上完整代码：
package com.test3;
import com.github.unidbg.AndroidEmulator;
import com.github.unidbg.Emulator;
import com.github.unidbg.arm.backend.Unicorn2Factory;
import com.github.unidbg.file.FileResult;
import com.github.unidbg.file.IOResolver;
import com.github.unidbg.linux.android.AndroidEmulatorBuilder;
import com.github.unidbg.linux.android.AndroidResolver;
import com.github.unidbg.linux.android.dvm.*;
import com.github.unidbg.linux.android.dvm.jni.ProxyDvmObject;
import com.github.unidbg.memory.Memory;
import java.io.File;
import java.io.UnsupportedEncodingException;
import java.util.*;
public class TEST3 extends AbstractJni implements IOResolver<AndroidFileIO> {
private final AndroidEmulator emulator;
private final DvmClass LibBili;
private final VM vm;
public TEST3() {
emulator = AndroidEmulatorBuilder
.for32Bit()
.addBackendFactory(new Unicorn2Factory(true))
.setProcessName("tv.danmaku.bili")
.build();
Memory memory = emulator.getMemory();
memory.setLibraryResolver(new AndroidResolver(23));
vm = emulator.createDalvikVM(new File("D:\\Compilation_Enviroment\\unidbg-master\\unidbg-android\\src\\test\\java\\com\\test3\\bilibili.apk"));
vm.setJni(this);
vm.setVerbose(true);
// add
emulator.getBackend().registerEmuCountHook(10000); // 设置执行多少条指令切换一次线程
emulator.getSyscallHandler().setVerbose(true);
emulator.getSyscallHandler().setEnableThreadDispatcher(true);
emulator.getSyscallHandler().addIOResolver(this);
//加载Dalvik的模块
DalvikModule dm = vm.loadLibrary("bili", true);
//加载目标类
LibBili = vm.resolveClass("com.bilibili.nativelibrary.LibBili");
dm.callJNI_OnLoad(emulator);
}
public static void main(String[] args) {
TEST3 test3 = new TEST3();
String result = test3.callS();
System.out.println("call s result: " + result);
}
@Override
public FileResult resolve(Emulator emulator, String pathname, int oflags) {
System.out.println("lilac open: " + pathname);
return null;
}
public String callS(){
TreeMap<String, String> map = new TreeMap<>();
map.put("build", "6180500");
map.put("mobi_app", "android");
map.put("channel", "shenma069");
map.put("appkey", "1d8b6e7d45233436");
map.put("s_locale", "zh_CN");
map.put("device", "android");
DvmObject<?> mapObject = ProxyDvmObject.createObject(vm, map);
String result = LibBili.callStaticJniMethodObject(emulator, "s(Ljava/util/SortedMap;)Lcom/bilibili/nativelibrary/SignedQuery;", mapObject).getValue().toString();
return result;
}
@Override
public boolean callBooleanMethod(BaseVM vm, DvmObject<?> dvmObject, String signature, VarArg varArg) {
switch (signature){
case "java/util/Map->isEmpty()Z":{
Map map = (Map) dvmObject.getValue();
return map.isEmpty();
}
}
return super.callBooleanMethod(vm, dvmObject, signature, varArg);
}
@Override
public DvmObject<?> callObjectMethod(BaseVM vm, DvmObject<?> dvmObject, String signature, VarArg varArg) {
switch (signature){
case "java/util/Map->get(Ljava/lang/Object;)Ljava/lang/Object;":{
Map map = (Map) dvmObject.getValue();
// 不要忘了getvalue
Object key = varArg.getObjectArg(0).getValue();
return ProxyDvmObject.createObject(vm, map.get(key));
}
case "java/util/Map->put(Ljava/lang/Object;Ljava/lang/Object;)Ljava/lang/Object;":{
Map map = (Map) dvmObject.getValue();
Object key = varArg.getObjectArg(0).getValue();
Object value = varArg.getObjectArg(1).getValue();
return ProxyDvmObject.createObject(vm, map.put(key, value));
}
}
return super.callObjectMethod(vm, dvmObject, signature, varArg);
}
@Override
public DvmObject<?> callStaticObjectMethod(BaseVM vm, DvmClass dvmClass, String signature, VarArg varArg) {
switch (signature){
case "com/bilibili/nativelibrary/SignedQuery->r(Ljava/util/Map;)Ljava/lang/String;":{
Map map = (Map) varArg.getObjectArg(0).getValue();
return new StringObject(vm, SignedQuery.r(map));
}
}
return super.callStaticObjectMethod(vm, dvmClass, signature, varArg);
}
@Override
public DvmObject<?> newObject(BaseVM vm, DvmClass dvmClass, String signature, VarArg varArg) {
switch (signature){
case "com/bilibili/nativelibrary/SignedQuery-><init>(Ljava/lang/String;Ljava/lang/String;)V":{
String arg1 = varArg.getObjectArg(0).getValue().toString();
String arg2 = varArg.getObjectArg(1).getValue().toString();
return vm.resolveClass("com/bilibili/nativelibrary/SignedQuery").newObject(new SignedQuery(arg1, arg2));
}
}
return super.newObject(vm, dvmClass, signature, varArg);
}
private static final char[] f14892c = "0123456789ABCDEF".toCharArray();
public static final class SignedQuery {
public final String a;
public final String b;
public SignedQuery(String str, String str2) {
this.a = str;
this.b = str2;
}
private static boolean a(char c2, String str) {
return (c2 >= 'A' && c2 <= 'Z') || (c2 >= 'a' && c2 <= 'z') || !((c2 < '0' || c2 > '9') && "-_.~".indexOf(c2) == -1 && (str == null || str.indexOf(c2) == -1));
}
static String b(String str) {
return c(str, null);
}
static String c(String str, String str2) {
StringBuilder sb = null;
if (str == null) {
return null;
}
int length = str.length();
int i2 = 0;
while (i2 < length) {
int i3 = i2;
while (i3 < length && a(str.charAt(i3), str2)) {
i3++;
}
if (i3 == length) {
if (i2 == 0) {
return str;
}
sb.append((CharSequence) str, i2, length);
return sb.toString();
}
if (sb == null) {
sb = new StringBuilder();
}
if (i3 > i2) {
sb.append((CharSequence) str, i2, i3);
}
i2 = i3 + 1;
while (i2 < length && !a(str.charAt(i2), str2)) {
i2++;
}
try {
byte[] bytes = str.substring(i3, i2).getBytes("UTF-8");
int length2 = bytes.length;
for (int i4 = 0; i4 < length2; i4++) {
sb.append('%');
sb.append(f14892c[(bytes[i4] & 240) >> 4]);
sb.append(f14892c[bytes[i4] & 15]);
}
} catch (UnsupportedEncodingException e) {
throw new AssertionError(e);
}
}
return sb == null ? str : sb.toString();
}
static String r(Map<String, String> map) {
if (!(map instanceof SortedMap)) {
map = new TreeMap(map);
}
StringBuilder sb = new StringBuilder(256);
for (Map.Entry<String, String> entry : map.entrySet()) {
String key = entry.getKey();
if (!key.isEmpty()) {
sb.append(b(key));
sb.append(ContainerUtils.KEY_VALUE_DELIMITER);
String value = entry.getValue();
sb.append(value == null ? "" : b(value));
sb.append(ContainerUtils.FIELD_DELIMITER);
}
}
int length = sb.length();
if (length > 0) {
sb.deleteCharAt(length - 1);
}
if (length == 0) {
return null;
}
return sb.toString();
}
public String toString() {
String str = this.a;
if (str == null) {
return "";
}
if (this.b == null) {
return str;
}
return this.a + "&sign=" + this.b;
}
}
public static class ContainerUtils {
public static final String FIELD_DELIMITER = "&";
public static final String KEY_VALUE_DELIMITER = "=";
public static <K, V> boolean equals(Map<K, V> map, Map<K, V> map2) {
if (map == map2) {
return true;
}
boolean z = false;
if (map == null || map2 == null || map.size() != map2.size()) {
return false;
}
Iterator<Map.Entry<K, V>> it = map.entrySet().iterator();
while (true) {
if (!it.hasNext()) {
break;
}
Map.Entry<K, V> next = it.next();
if (map2.get(next.getKey()) != next.getValue()) {
z = true;
break;
}
}
return !z;
}
public static <K, V> int hashCode(Map<K, V> map) {
return toString(map).hashCode();
}
public static <K> String toString(List<K> list) {
if (list == null) {
return "";
}
StringBuilder sb = new StringBuilder();
int i2 = 0;
for (K k : list) {
int i3 = i2 + 1;
if (i2 > 0) {
sb.append(FIELD_DELIMITER);
}
sb.append(k.toString());
i2 = i3;
}
return sb.toString();
}
public static <K, V> String toString(Map<K, V> map) {
if (map == null) {
return "";
}
StringBuilder sb = new StringBuilder();
int i2 = 0;
for (Map.Entry<K, V> entry : map.entrySet()) {
int i3 = i2 + 1;
if (i2 > 0) {
sb.append(FIELD_DELIMITER);
}
sb.append(entry.getKey().toString());
sb.append(KEY_VALUE_DELIMITER);
sb.append(entry.getValue().toString());
i2 = i3;
}
return sb.toString();
}
public static <K> String toString(Set<K> set) {
if (set == null) {
return "";
}
StringBuilder sb = new StringBuilder();
int i2 = 0;
for (K k : set) {
int i3 = i2 + 1;
if (i2 > 0) {
sb.append(FIELD_DELIMITER);
}
sb.append(k.toString());
i2 = i3;
}
return sb.toString();
}
}
}
六、参考
[Unidbg 的基本使用（四）](https://www.yuque.com/lilac-2hqvv/xdwlsg/uo6guvore38kr29y?# 《Unidbg 的基本使用（四）》)
转载请注明来源，欢迎对文章中的引用来源进行考证，欢迎指出任何有错误或不够清晰的表达。可以在下面评论区评论，也可以邮件至 1621925986@qq.com
